Electroacoustic measurements in a flash

The dScope M1 Audio Analyzer can analyze a complete electroacoustic system including its loudspeaker, microphone, integrated analogue and digital amplifiers, A/D and D/A converters, and audio communication channels (including USB, I2S and Bluetooth). With the dScope M1 and the TTC measurement chamber your electroacoustic measurements are easy, accurate and repeatable!

The built-in phantom power (48V or CCP) allows you to directly connect your measurement microphone and start measuring using the dScope’s Log-Swept-Sine (LSS) script. The LSS script gives you the following results in a flash:

  • Frequency response
  • Acoustic phase
  • THD and individual harmonics
  • Rub & Buzz
  • Impedance magnitude & phase
  • Total dBSPL level, Sensitivity, Distance, Polarity, Resonant frequency (Fs), and Zmin

See this short video to see the Log-swept-sine measurement script in use

Click here to see the video



Click the button below to see how affordable electroacoustic measurements can be!

Configure and see pricing

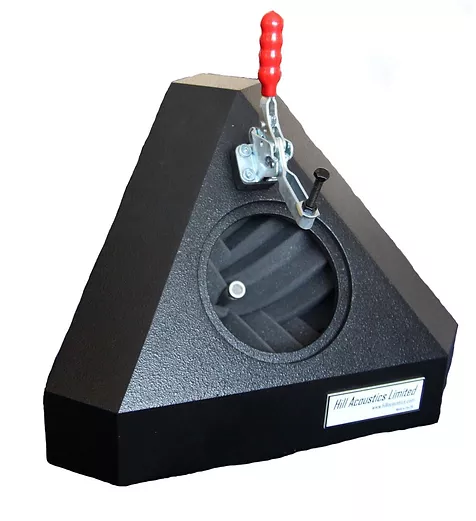

Measure your loudspeaker with staggering repeatability using the TTC chamber

The Hill Acoustics measurement chambers can overcome the accuracy and repeatability issues by providing a standardized method that can be used in the R&D lab, at the end of the production line or even at home. The chambers ensure fixed mic and loudspeaker positions, standing wave free measurements and a calibrated response without a low frequency cutoff. The chamber is easy to use with the dScope LSS script and it makes these two solutions a perfect pair for your electroacoustic product’s design process.

See also the Polar Test Chamber (PTC) and Custom Test Chamber solutions!



Read more about the TTC
